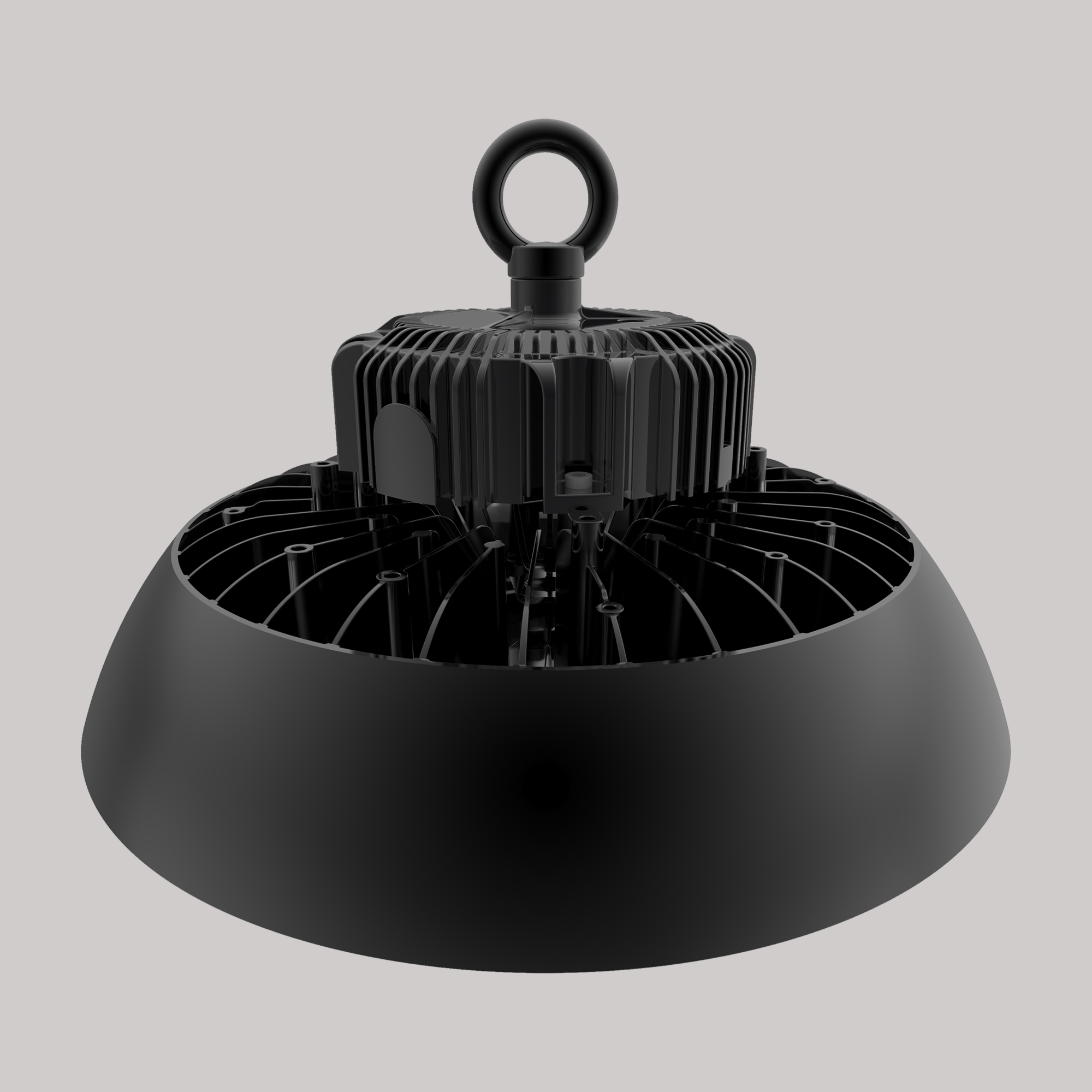

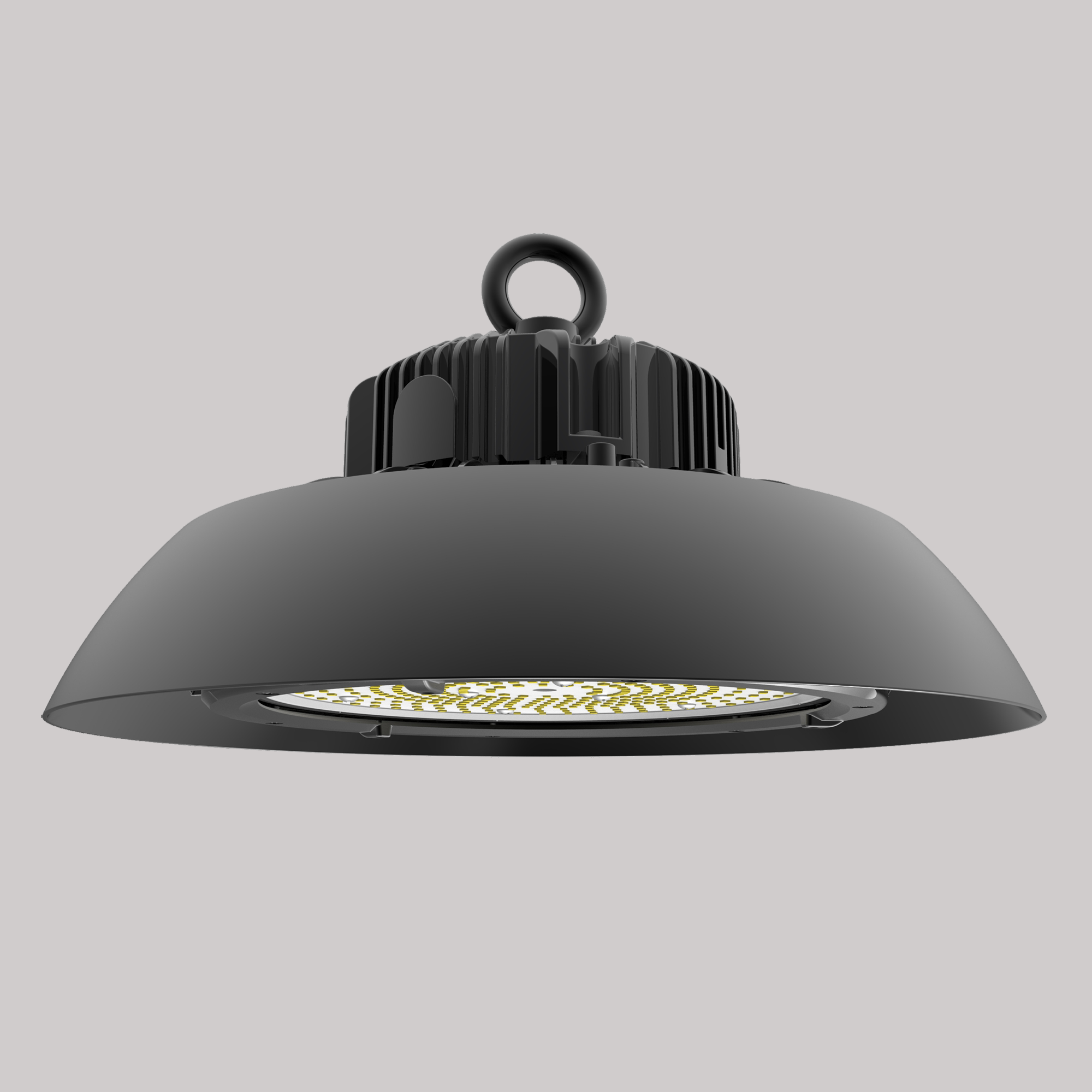

HIGH BAY SERIES 01
This series of high bay light is a direct replacement for traditional lamp such as high-pressure lamp. It is widely used in warehouses, workshops, exhibition hall, hawker centre and etc. It will definitely reduce the electricity consumption by 10% or more (comparing with traditional incandescent light) with high efficient LED technology. It is environment friendly with mercury free, lead free, no UV, no IR, no flicker and no hazard to health.
With its special heat dispersing materials, its lifespan is extremely long, which is 50,000 hours (30 times longer than incandescent lamp / 5 times longer than energy saving lamp). No Ballast and starter is needed, meaning turn on and off instantly. With its high lighting effect (which is up to 130 lumens per watt), the brightness is higher than incandescent lamp.
Meanwhile, it is assembled by Philip LED chips and high quality Meanwell driver. Its performance is guaranteed.
SPECIFICATIONS
- Voltage: 100-277VAC
- CRI: Ra>80
- Power Factor: >0.93
- Beam Angle: 60/90/120
- IP: 65
- Material: AL
- Driver: Meanwell Built In
- LED Chip: Philips
- Lifespan: 50000 hours
- Working Temperature (℃): -30—50
- Colour Temperature: 3000/4000/5000/5700/6500
| Model | Power (W) | Lumens (lm) | D (mm) | H (mm) | Dimmable |
|---|---|---|---|---|---|
| HB100Y01 | 100 | 13000 | 302 | 192 | No |
| HB150Y01 | 150 | 19500 | 302 | 192 | No |
| HB200Y01 | 200 | 26000 | 336 | 192 | No |
| HB240Y01 | 240 | 32500 | 336 | 192 | No |
